Circuit Medic Stencil Rework

Comes in packets of 10 stencils.

256 Balls - 17mm x 17 mm Body. 1.00mm pitch

Flextac Stencils are self-sticking solder paste stencils. These laser cut, polymer stencils use a full-release, residue-free adhesive similar to sticky notes.
The self-sticking adhesive on the bottom of the stencil seals around each BGA pad to ensure that solder paste will not bleed under the stencil when the paste is applied. Disposable Flextac
Stencils are easy to use and will not leave any residue on the board surface.

If you currently use metal stencils you need to fixture them or tape them in position to hold them in place. Metal stencils can warp, and if the circuit board has undulations in the board surface,
the metal stencil will not sit flat. Since there is no gasket-like seal, solder paste can easily bleed under metal stencils when paste is applied with a squeegee. Also solder paste can spill out over
the sides of flat stencils contaminating the circuit board surface.

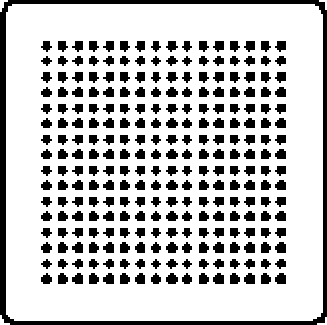

Part No. B4-256-1717-100

Thickness 004" 0.102 mm

Aperture .020" 0.508 mm

Balls 256

Ball Pattern 16 x 16 Full Array

Pitch .039" 1.00 mm


Component 17 mm x 17 mm

Pkg./10
