Desco Emit Surface Resistance Meter kit

Surface Resistance Meter kit
This model is now obsolete and has been replaced with DES19290

NEW Enclosure with Rubber Grip Handles

Thinner and narrower design is easier to hold and provides protection from drops.

NEW Quick Check Button Bypasses the 15 second electrification period to allow quick spot checks.
NEW Battery Compartment
Easy-to-access compartment without the need for tooling or probes.

Digital Compliance Verification Surface Resistance Meter Kit*

Measures resistance point-to-point(Rtt) or surface to ground (Rtg) of work surfaces, flooring systems, garments, packaging, and other materials in accordance with ESD Association documents: ESD TR53, ANSI/ESD S4.1, ANSI/ESD S7.1, ANSI/ESD STM97.1 and other documents.
Resistance Range: Greater Than 1.0 x 103 ohms to Less Than 1.0 x 1012 (+/-10% Accuracy)
Determines if a surface is dissipative, conductive, or insulative for ESD control applications in electronics manufacturing or handling environments.
Under Load Test Voltages (10V or 100V ±5%)
Meets ANSI/ESD S20.20 resistance testing requirements for product qualification and compliance verification.
Selectable Test Voltage
Switches to appropriate test voltage (10V for tests <1 x 106 or 100V for tests >1 x 106) in AUTO mode or may be fixed to at 10V in HOLD mode.
Ohm Values are Expressed with a Digital Mantissa and LED Exponent
Provides an easy to read and accurate measurement.
Pre-set 15 Second Electrification Period in Full Test Mode
Meets the requirements of the ANSI/ESD S4.1 testing requirements.
Temperature (Fahrenheit and Celsius) and Relative Humidity Measurements
Measures temperature and relative humidity (during 15 second electrification period) as required by ANSI/ESD S20.20.
NIST Calibrated with Certificate
Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on calibration of Desco products, see Calibration.
Made in the United States of America

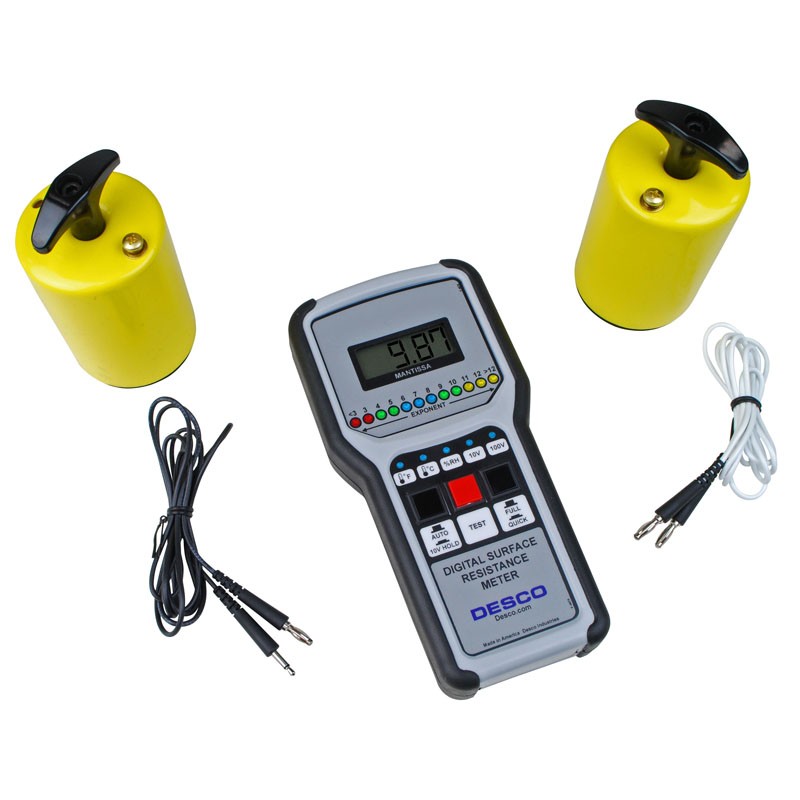

*19787 Digital Surface Resistance Meter Kit

1 Digital Surface Resistance Meter

2 Shielded Test Leads, 5' Length (19783)

2 Five Pound Electrodes

2 AA Alkaline Batteries

1 Gator Clip

1 Plastic Carrying Case

1 Certificate of Calibration

DES19787- Digital Manual.
