Chip Counters

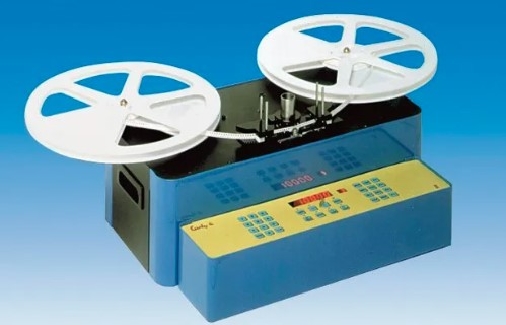

The County-S EVO is a motorised counter for taped SMD components.

It can operate in two different modes:
Totaliser mode: components are counted from zero, tape feed is motorised and the counter automatically stops at the tape’s end, to prevent loss of the total.
Preset mode: the desired component number is keyed on the keyboard and the counter automatically stops when it reaches the corresponding component.
The display screen shows the following: count direction, the number of holes per component, the counting mode, the operator name, the final tally, and the date and time.

Maximum tape Height: 56 MM
Maximum Reel Diameter: 400 MM OR 650 WITH SUPPORTS 8301.150
Counting: UP/DOWN
Partial Counting Memory
Pre-Selection Mode
Adjustable feeding tape
Step by Step feed: One component at a time
Serial connection with PC and printer
Display: Blue LCD with a shiny back side
Maximum Counting Speed: 200 PCS/SEC - (1 PC PER HOLE)
Number Of Holes Per Component: From 0,5 TO 99

Refer to Images section for more Information

8301.131_TDS Page_1 8301.131_TDSPage_2
